Checkweighers

R Series

The high-speed specialist

From 30 g to 6 kg - Throughput up to 600 ppm

Equipped with a chain belt system to handle cylindrical and tall products such as cans, jars, and tetrabriks, this series combines unparalleled sturdiness with high-performance accuracy and speed. This is achieved through the guiding rails that stabilize the product during transport.

The structure is specifically designed for use in harsh industrial environments, even in the presence of chemicals or corrosive substances.

Download the catalogue

Main Features

Is this what you are looking for?

Side pneumatic ejectors and diverters

Depending on the product's shape and the belt speed, the ejector can be pneumatic with a cylinder, high-speed, with a diverter, or progressive.

IP69K extra washable

The special 100% stainless steel structure, which also covers the load cell and pressurized motors, provides it with IP69K protection, making it suitable for washing even with high-pressure industrial cleaning jets.

Safety cabin

The control panel protection cabin ensures complete washability, even at high temperatures and with powerful water jets.

Safety devices

There are 5 available safety devices: the pressure switch, the reject confirmation photocell, the full waste basket photocell, the plastic/steel waste basket with automatic closure, and the audible-visual alarm tower.

Feeding screw

In the case of cylindrical-shaped products, the installation of a feeding screw ensures stable and secure feeding and proper pitch alignment.

Details

Where to use it

To weigh food, beverages and cosmetics, primary--packaged in cans, tetrabriks and jars.

Tomato sauce cans Watch the video
Teflon cylinders Watch the video
Milk and drinks in tetrabriks Watch the video

Safety cabin

The IP69K protection is ensured not only by the materials used in the machine but also by the special safety cabin for the control panel. It can be raised during use and lowered during cleaning to avoid contact with water or detergents.

Feeding screw

Its function is to space the incoming products into the machine, ensuring the right pitch between products and allowing the weighing belt to operate under the best possible conditions.

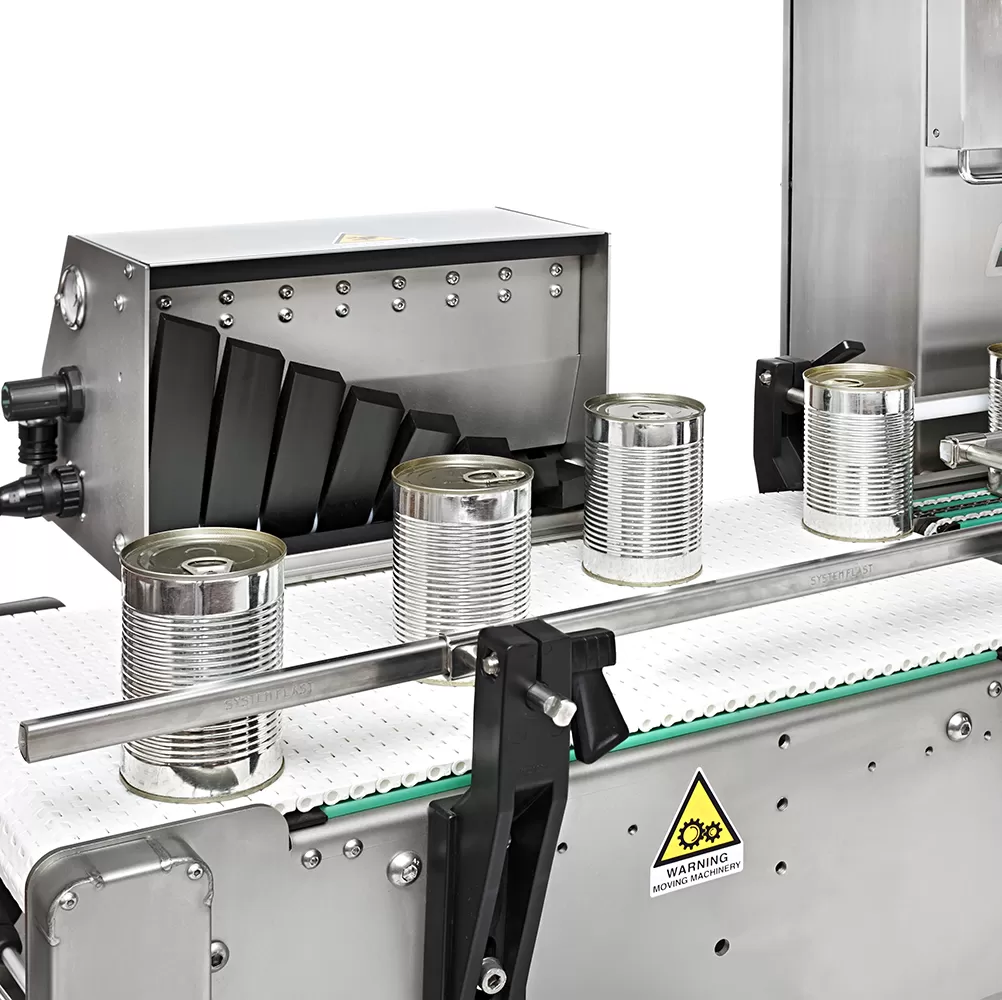

Progressive Ejector

It is an ideal spacing system for high-speed lines because it pushes products onto different lanes, rejecting them in the case of out-of-tolerance products or simply classifying them into different weight categories.

Technical Datasheet

Customization is our standard

Capacity	from 30 g to 6 kg
Scale interval "e"	≥ 0.5 g
Display resolution "d"	≥ 0.1 g
Accuracy (3σ)	≥ ± 0.3 g
Throughput	≤ 600 ppm
Belt speed	≤ 120 m/min
Power Consumption	≤ 0.3 kW
Configuration	4 conveyors
IP Protection	IP69K
Height	from 460 mm to 1200 mm
Conveyor width	from 90 mm to 304 mm
Conveyor Length	from 150 mm to 650 mm
Conveyor type	Chain + Modular plastic
